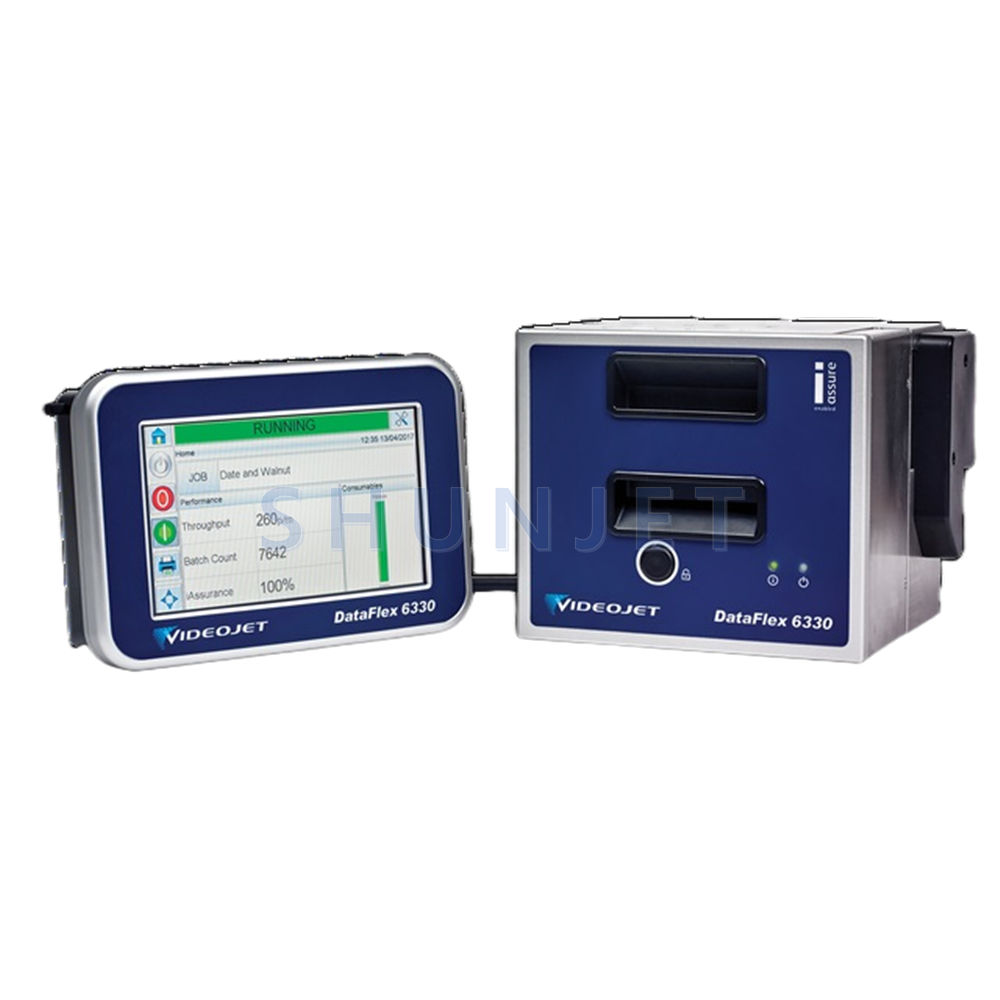

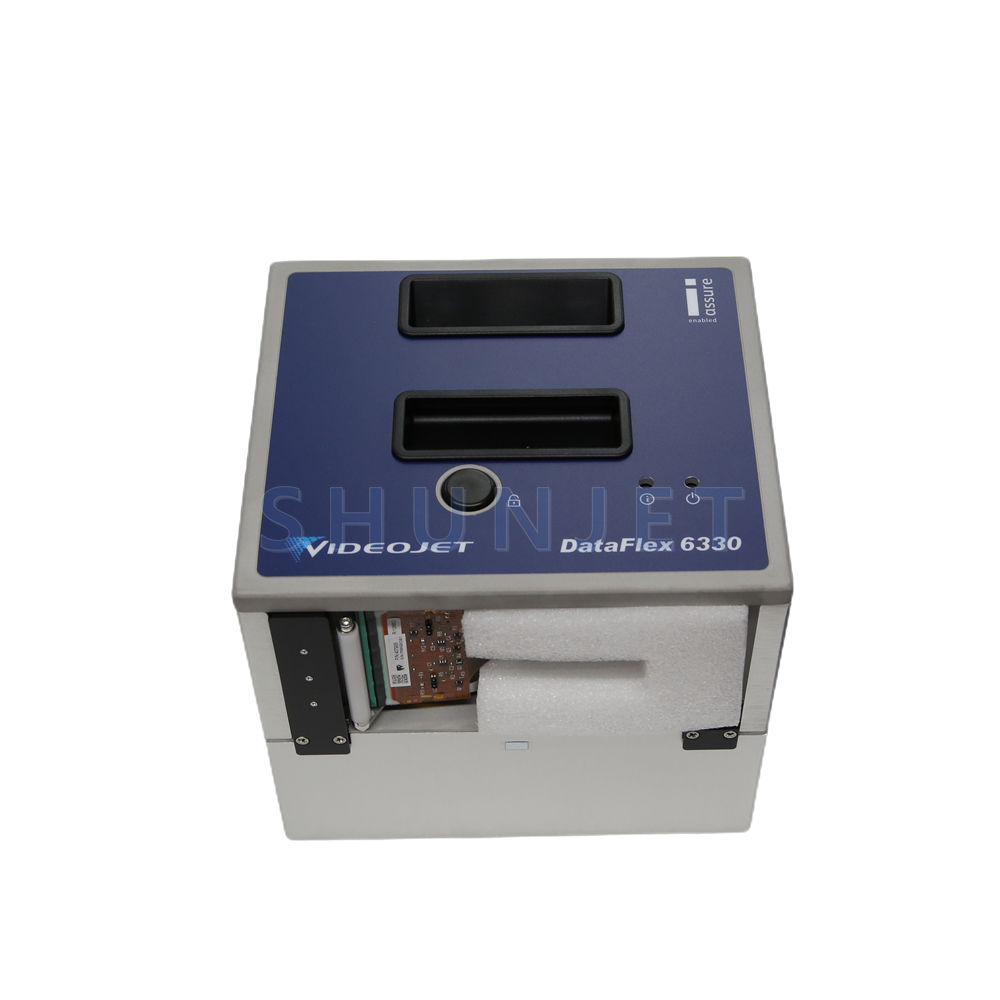

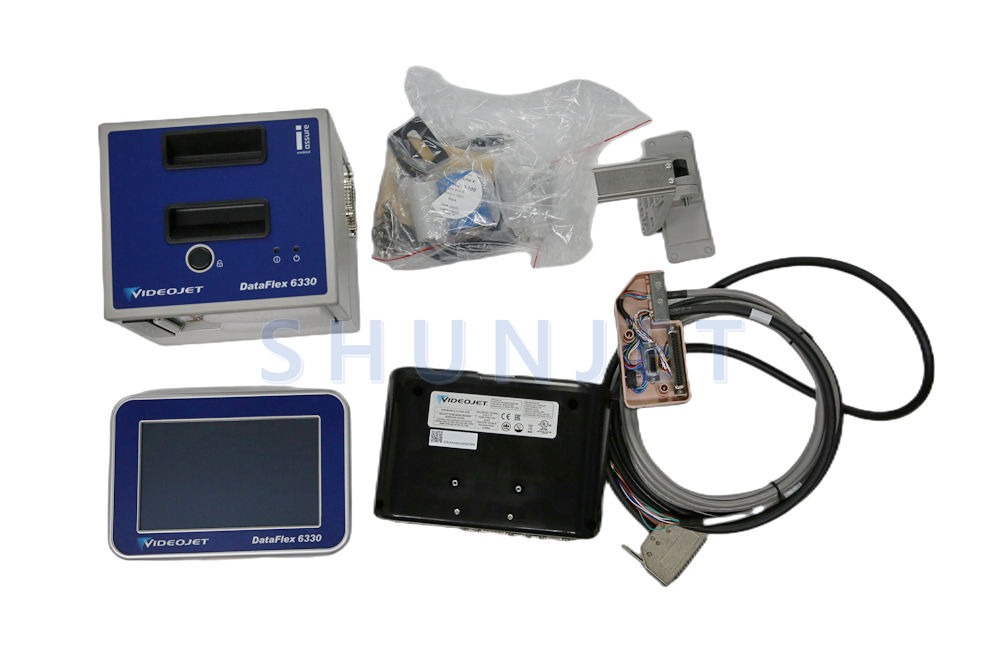

Videojet DataFlex 6330 TTO Printer

Printer Mode

Intermittent and Continuous Motion

Print Gap

Consistent 0.020″ (0.5mm)

Ribbon Widths

6330(53mm) :0.8” (20mm), 2.2” (55mm) max 6330(32mm):0.8” (20mm), 1.3” (33mm) max

Bar Code Printing

EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request

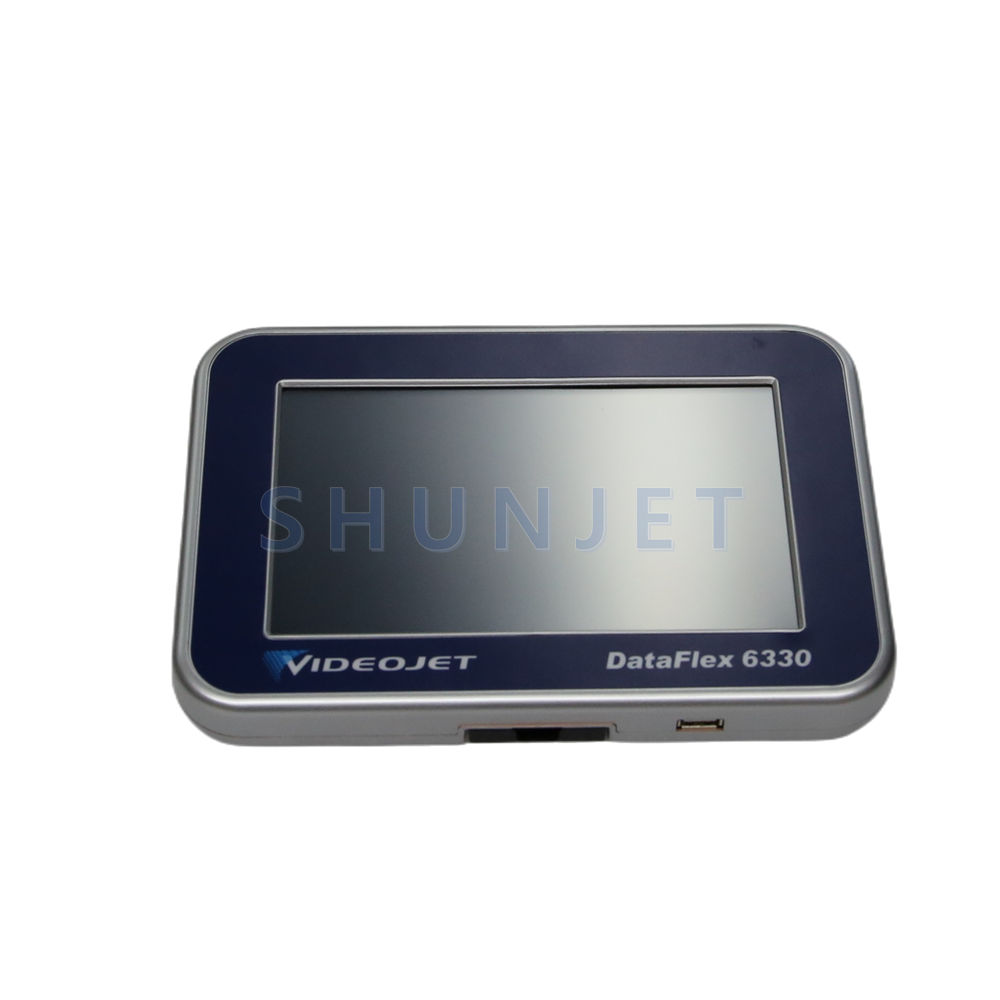

Operator Interface

TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support

Leader/ Follower Capability ( Up to 4 Printers Controlled by One User Interface)

Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit

Standard Communication

RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations

Web Browser Capability

Yes

Continuous Mode

–

Maximum Print Area ( Width x Length)

6330(53mm) :2.1” (53mm) wide x 7.9” (200mm) long 6330(32mm):1.3” (32mm) wide x 7.9” (200mm) long

Maximum Print Speed

29.5 in./sec (750mm/sec)

Minimum Print Speed

0.04 in./sec (1mm/sec)

Estimated Maximum Throughput ( Single Line Code)

6330(53mm) : Up to 250 prints per minute 6330(32mm):Up to 250 prints per minute

Intermittent Mode

–

Maximum Print Area ( Width x Length)

6330(53mm) : 2.1” (53mm) wide x 2.95” (75mm) long 6330(32mm): 1.3” (32mm) wide x 2.95” (75mm) long

Maximum Print Speed

6330(53mm) : 29.5 in./sec (750mm/sec) 6330(32mm): 29.5 in./sec (750mm/sec)

Minimum Print Speed

1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality

Note

**6330: The 6330 is a medium speed Thermal Transfer Overprinter
