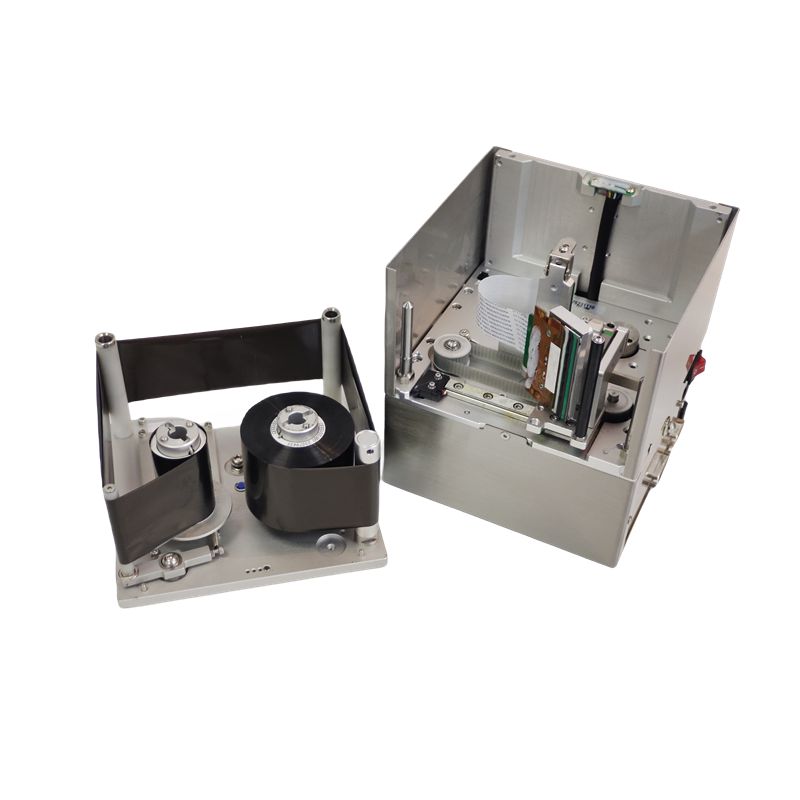

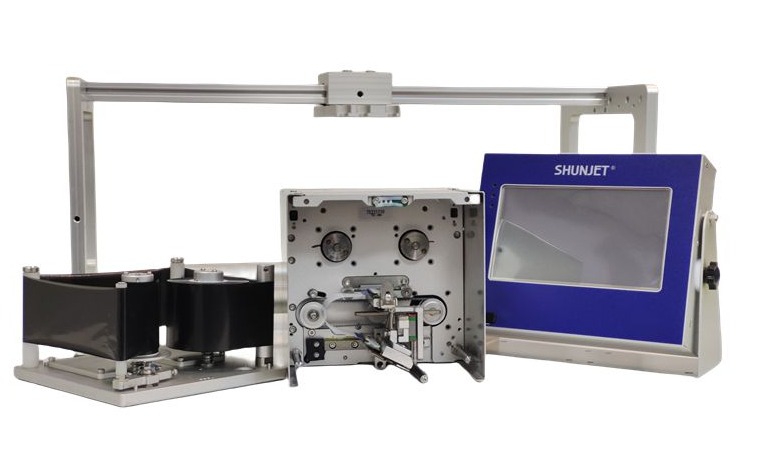

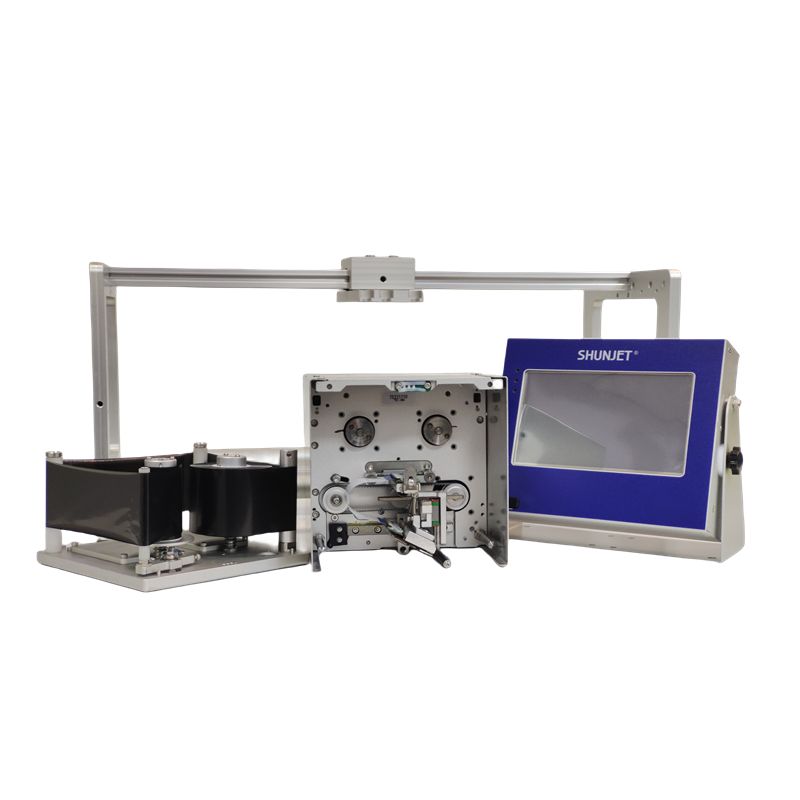

With a printing width of 32mm and 53mm respectively, the U30 Plus and U50 Plus TTO printers are designed to meet the demands of various industries, including food and beverage, pharmaceuticals, packaging, and more. Equipped with advanced thermal transfer technology, these printers ensure clear and legible prints on a wide range of substrates, including flexible packaging materials, labels, and films.
The U30 Plus and U50 Plus TTO printers come with user-friendly interfaces and intuitive controls, making them easy to operate and navigate. The printers offer seamless integration into existing production lines, allowing for efficient and accurate batch coding and product identification.
We are not only manufacturing the TTO，
We also supply the marking solution of flexible package.
□ Product Features
□ Product Specification
|
Product No. |
U30 PLUS (32mm） |
U50 PLUS (53mm） |
|
Print mode |
Intermittent and continuous integration |
|
|
Left and right direction |
optional |
|
|
Print resolution |
300DPI |
|
|
Intermittent maximum printing range |
32mm*55mm |
53mm*55mm |
|
Maximum continuous printing range |
32mm*120mm |
53mm*120mm |
|
Maximum ribbon length |
600m |
|
|
Standard ribbon width |
33mm |
55mm |
|
Print content |
Date, future date, time, counter, shift code, QR code, image, text |
|
|
enter |
Print signal, encoder signal |
|
|
output |
Fault status output (relay signal output) |
|
|
Dimension length, width and height (mm) |
164*158*166 |
164*158*186 |
|
weight |
6kg |
6.5kg |
|
Power requirements |
90~240 VAC, 50/60 Hz, 120 VA |
|
|
Air sourcerequirements |
No air supply required |
|
|
Environmental requirements |
Temperature range: 5~40℃ Humidity: 10% to 90%, no condensation |
|
|
Operation interface* |
7-inch color liquid touch screen display, WYSIWYG print content preview, online diagnostic menu |
|
|
Controller specifications |
205*170*56Weight: 1.3KG |
|
Bracket can be customized
Our Advantages
Fujian Quanzhou Shunjet Precision Machinery Co.,Ltd is focusing the design,R&D and manufacture for CIJ and TTO printers, spares and consumables. It is committed to offer various marking solutions for customers around the world.The group was established in 2003,and their main team members all have more than 15 years’experiences in the CIJ/TTO industry who can provide very professional and high-quality services.
Why choose us?
1.We have more than 15 years in this line!
2.Free 3 months warranty for our long-term customers!
3.We can supply large quantity!
4.Competitive price with high quality !
5.We can accept OEM!
FAQ
Q.What's your mininum order quantity?
A:1 piece.
Q.Do you have after sales service?
A:Yes, good after sales service will be provided when you need.
Q.Do you have technical support?
A:Yes, we have very professional engineers who will help you solve your problems.
Q.How long can I get reply after enquiry?
A:Within 12 hours.
